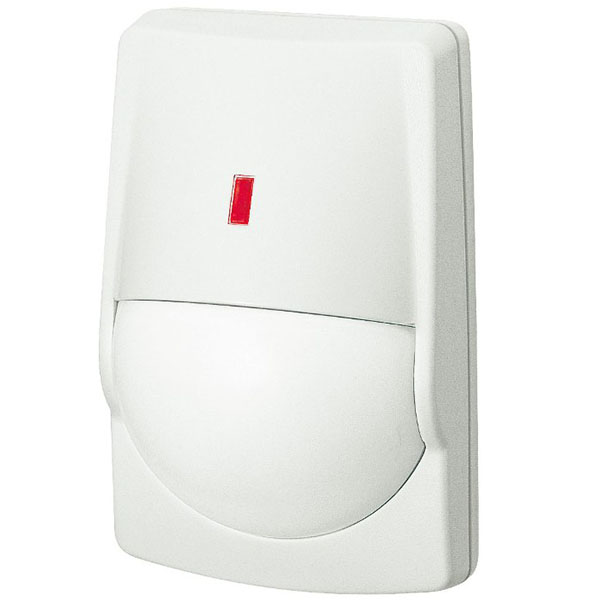

The RX-40QZ gives extremely high false alarm protection with excellent tolerance to spot temperature changes from curtains, small animals, and pet. Using patented Quad Zone Logic, it is able to accurately discriminate between humans and other sources of infrared, providing reliable detection in a diverse range of applications.
The attractive housing incorporates the unique spherical lens design, which is not only robust, but also helps to maximise the performance of Quad Zone Logic by providing an accurate focal length for each detection zone.
Patented quad zone logic
Spherical lens design
Temperature compensation
Sealed optics
Selectable pulse count (2 or 4)
|
Model
|
RX-40QZ
|
|
Coverage
|
12m x 12m 85° wide
|
|
Detection zones
|
78 zones
|
|
Sensitivity
|
2°C at 0.6m/sec.
|
|
Detectable speed
|
0.3m - 1.5m/sec.
|
|
Power supply
|
9.5 - 16V DC
|
|
Current consumption
|
11mA (max.) at 12V DC
|
|
Alarm period
|
Approx. 2.5 sec.
|
|
Alarm output
|
N.C. 28V DC 0.2A max.
|
|
Tamper switch
|
N.C. Opens when cover is
removed
|
|
Pulse count
|
Approx. 20 sec. 2 or 4
|
|
Warm-up period
|
Approx. 30 sec.
|
|
LED indicator
|
Alarm condition
|
|
Operating temperature
|
-20°C to +50°C
|
|
Environmental humidity
|
95% max.
|
|
RF interference
|
No Alarm 20V/m
|
|
Mounting height
|
1.5m - 2.4m
|
|
Weight
|
70g
|
|
Dimensions (H x W x D)
|
97mm x 62mm x 44mm
|
